For Ingersoll Rand 5/8" X 3/4" Inverted Flare Air Compressor

Aftermarket Check Valve for Ingersoll Rand - 5/8" Female NPT Inverted Flare x 3/4" Male NPT Outlet

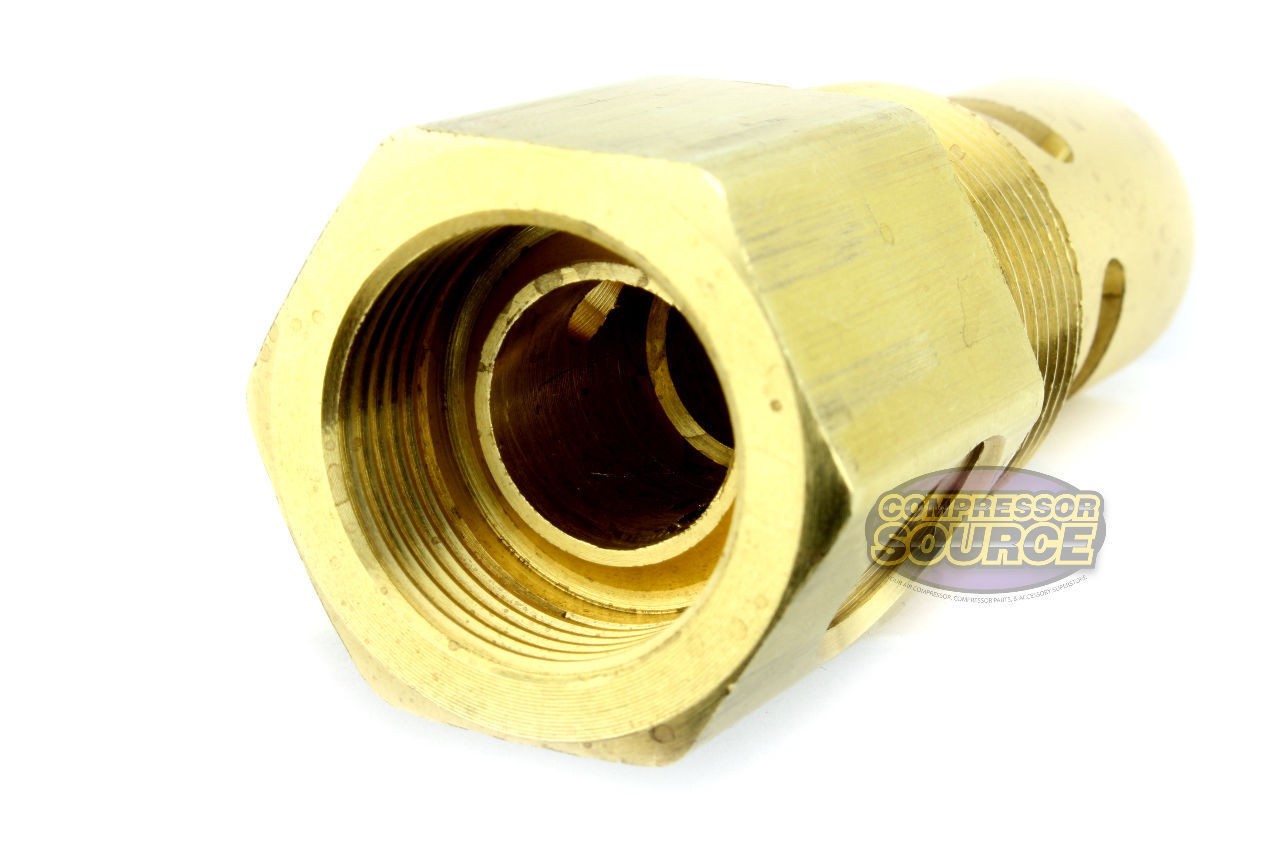

Air compressor inverted flare fitting check valve for Ingersoll Rand & other compressors. This check valve has a 5/8" Female NPT inverted flare inlet as well as a 3/4" Male NPT outlet that screws into the air tank. On the side of the valve there is a 1/4" Female NPT port for a pressure relief valve. On the other side there is a 1/8" Female inverted flare fitting for hooking up your Ingersoll Rand unloader line. You can see all of these ports in the photos above. This is a high quality check valve that is made right here in the U.S.A.!

Specifications:

Air Line Inlet: 5/8" Inverted Flare Threads (Measures about 13/16" Inside Diameter)
Air Outlet: 3/4" Male NPT (Measures about 1" outside Diameter)
Side Port (1) - 1/8" Female NPT Inverted Flare (Measures about 3/8" Inside Diameter)
Side Port (2) - 1/4" Female NPT (Measures about 1/2" Inside Diameter) Can be used for relief valve or plug if needed

MADE IN THE USA!

This valve works on all Ingersoll Rand compressors that have a 3/4" NPT tank connection and a 5/8" outside diameter copper tube coming off of the compressor leading to the tank. Use the detailed pictures above to compare to your current valve.
